Ventilation and breather filter with tread

  • SF ventilation and breather filter for gear unit housings and crankcases and liquid tanks
  • Dry air cleanerHousing: steel
  • Gasket: NBRS
  • crew and wing screw: galvanized steel

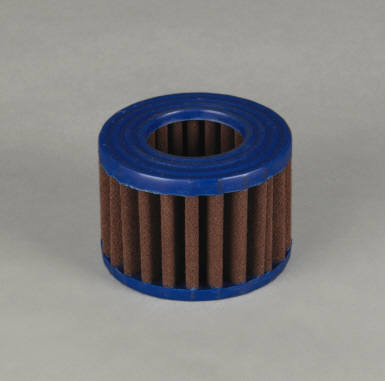

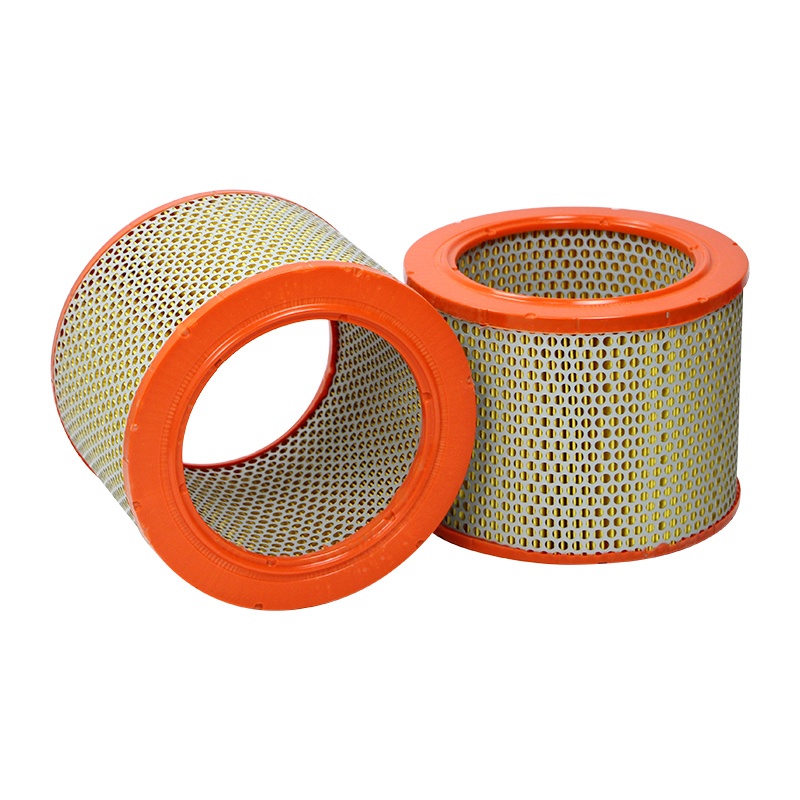

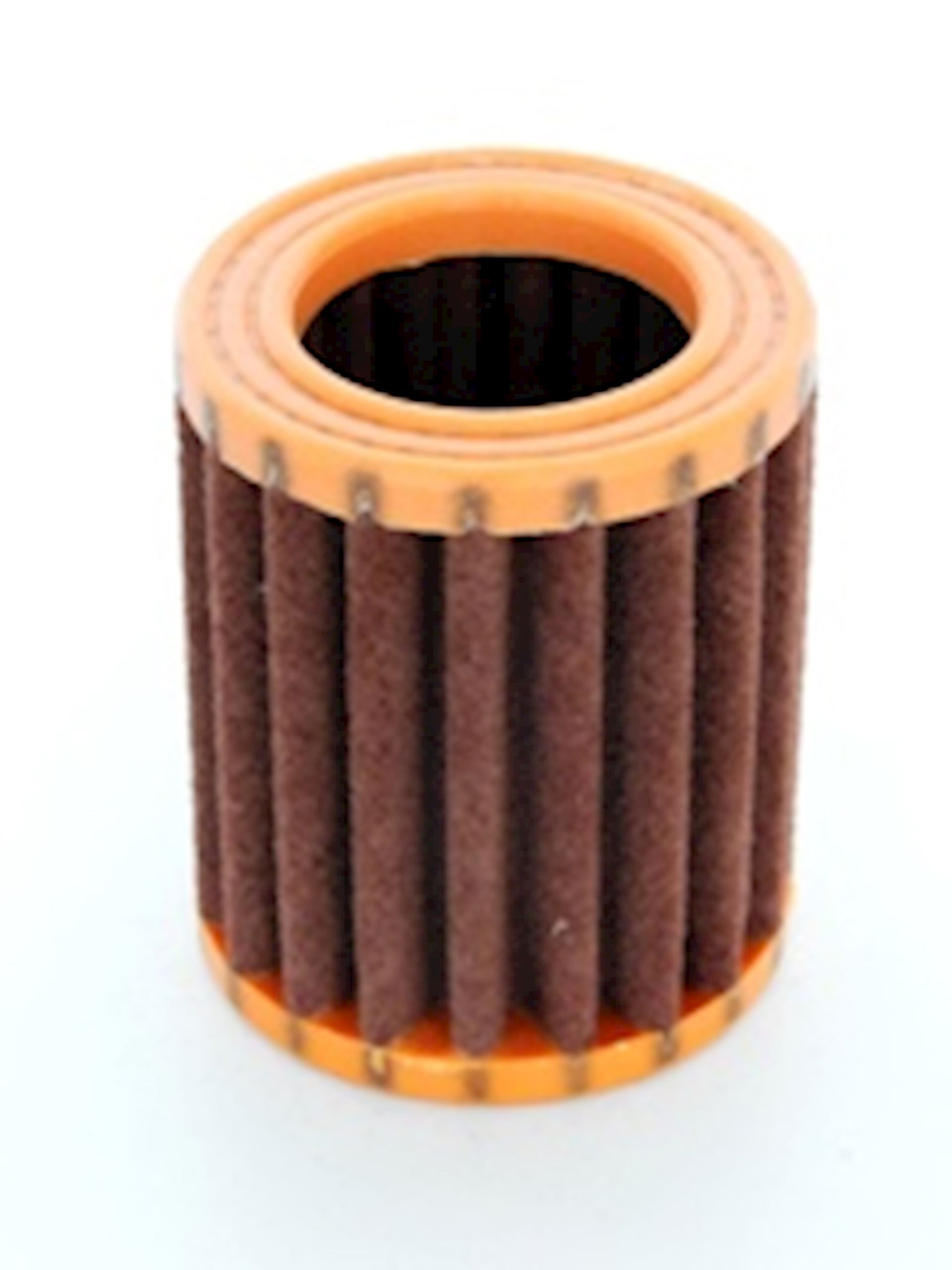

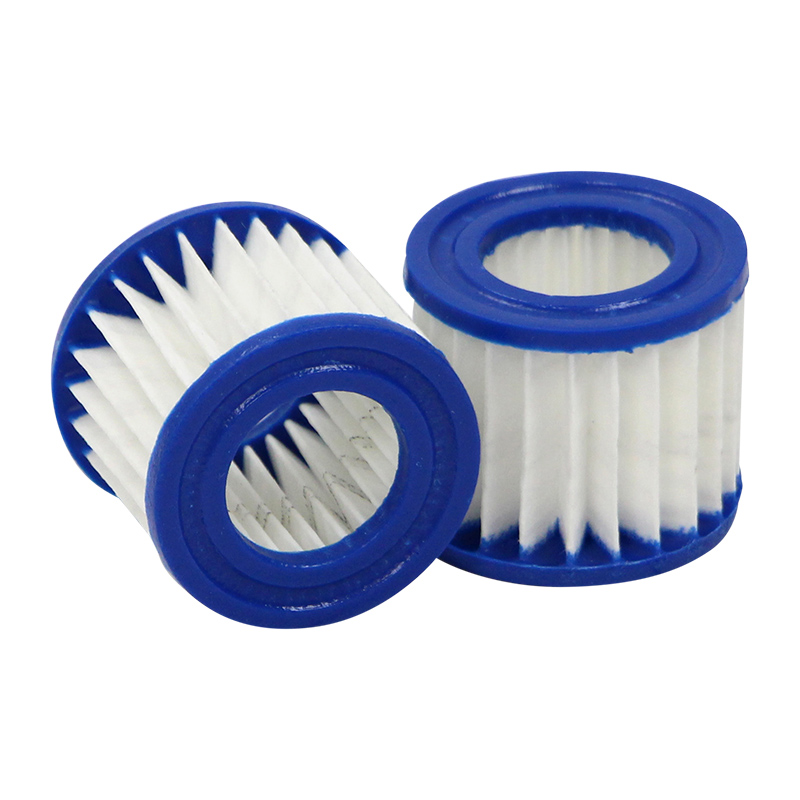

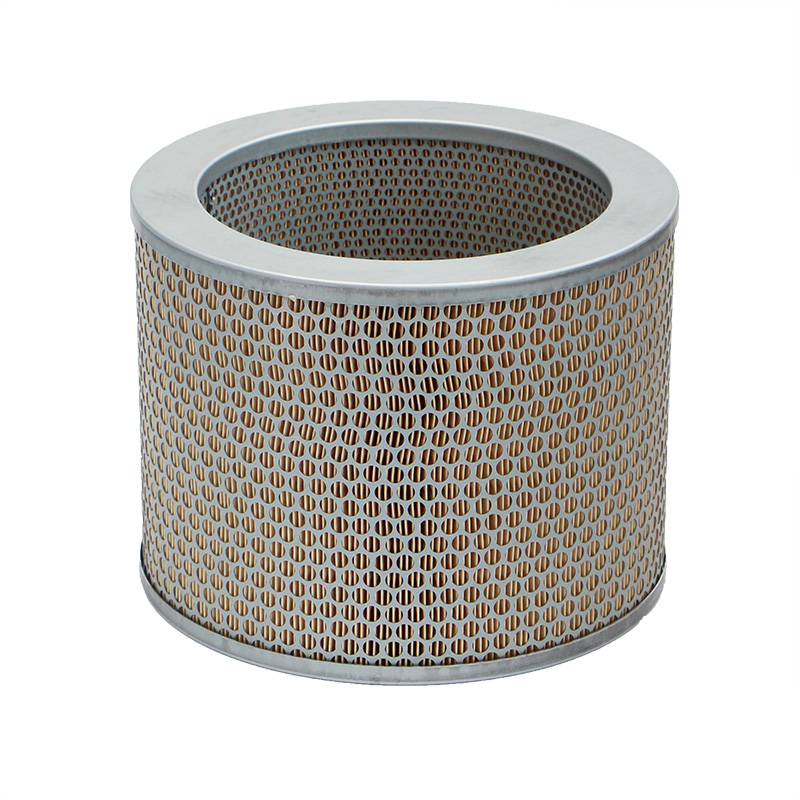

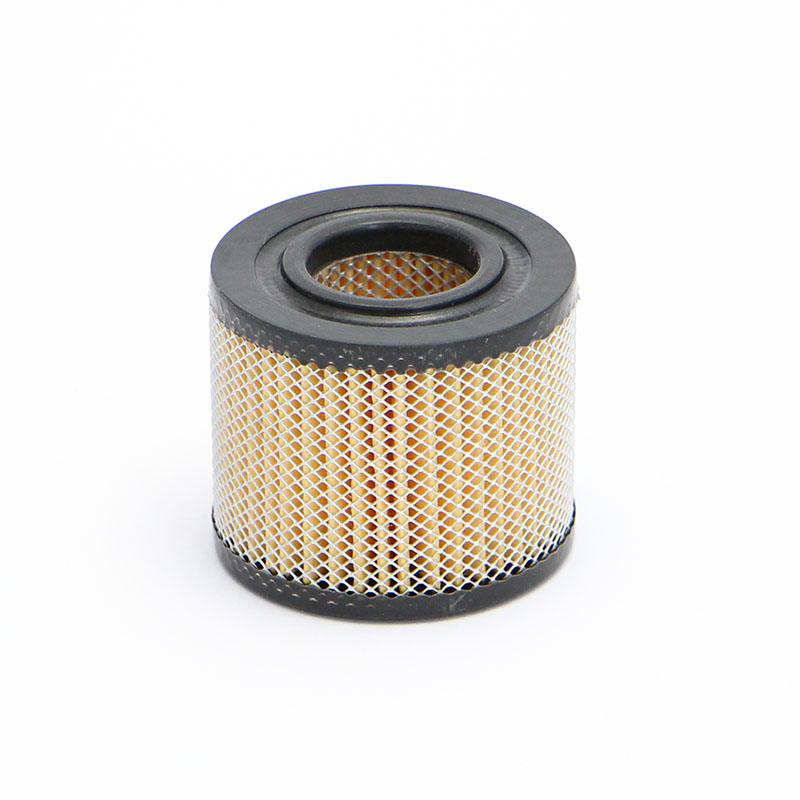

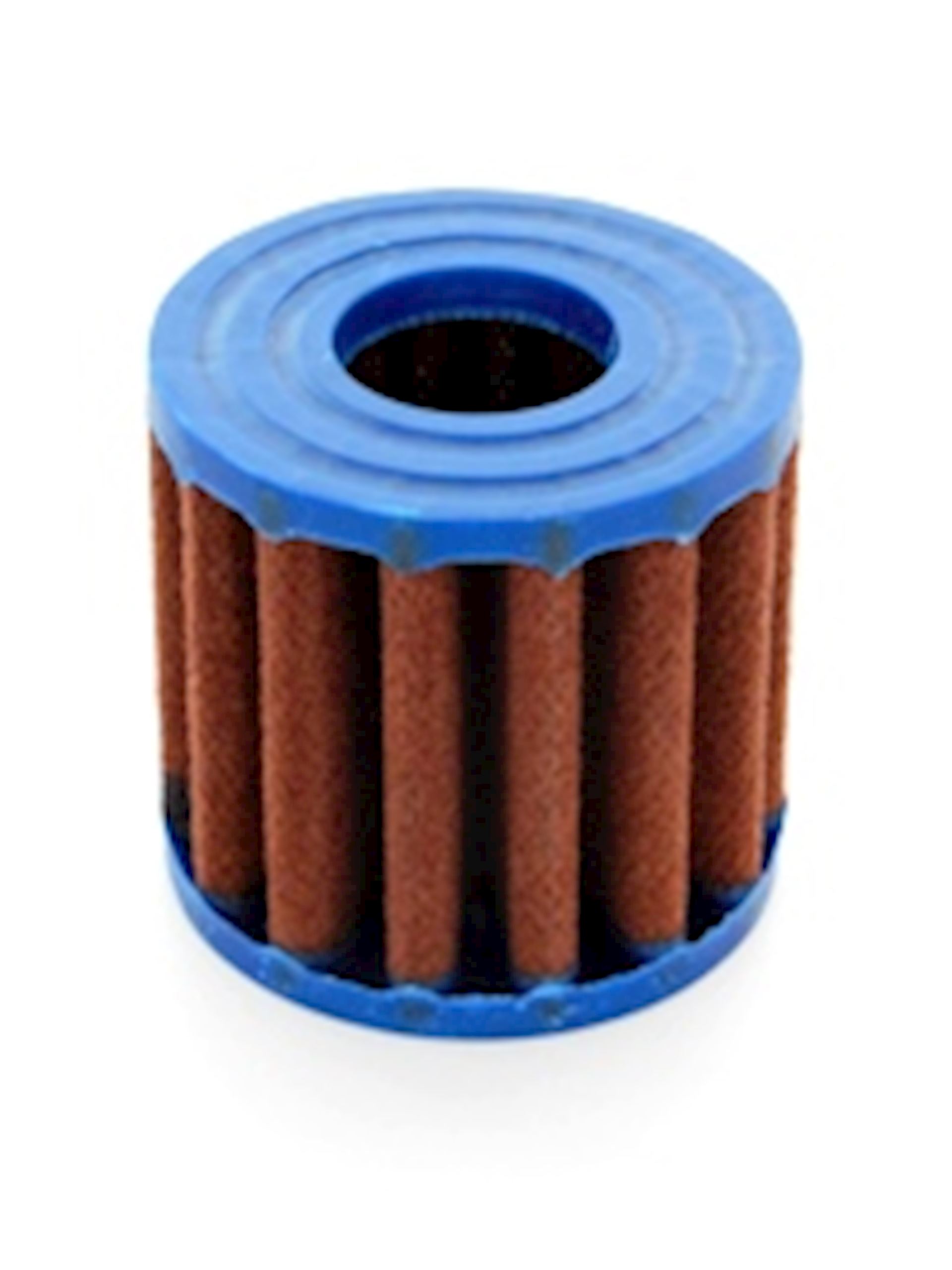

  • Cartridge: cellulose media 7-10 micron, mesh 40 micron, other media on request
Ventilation and breather filter with tread

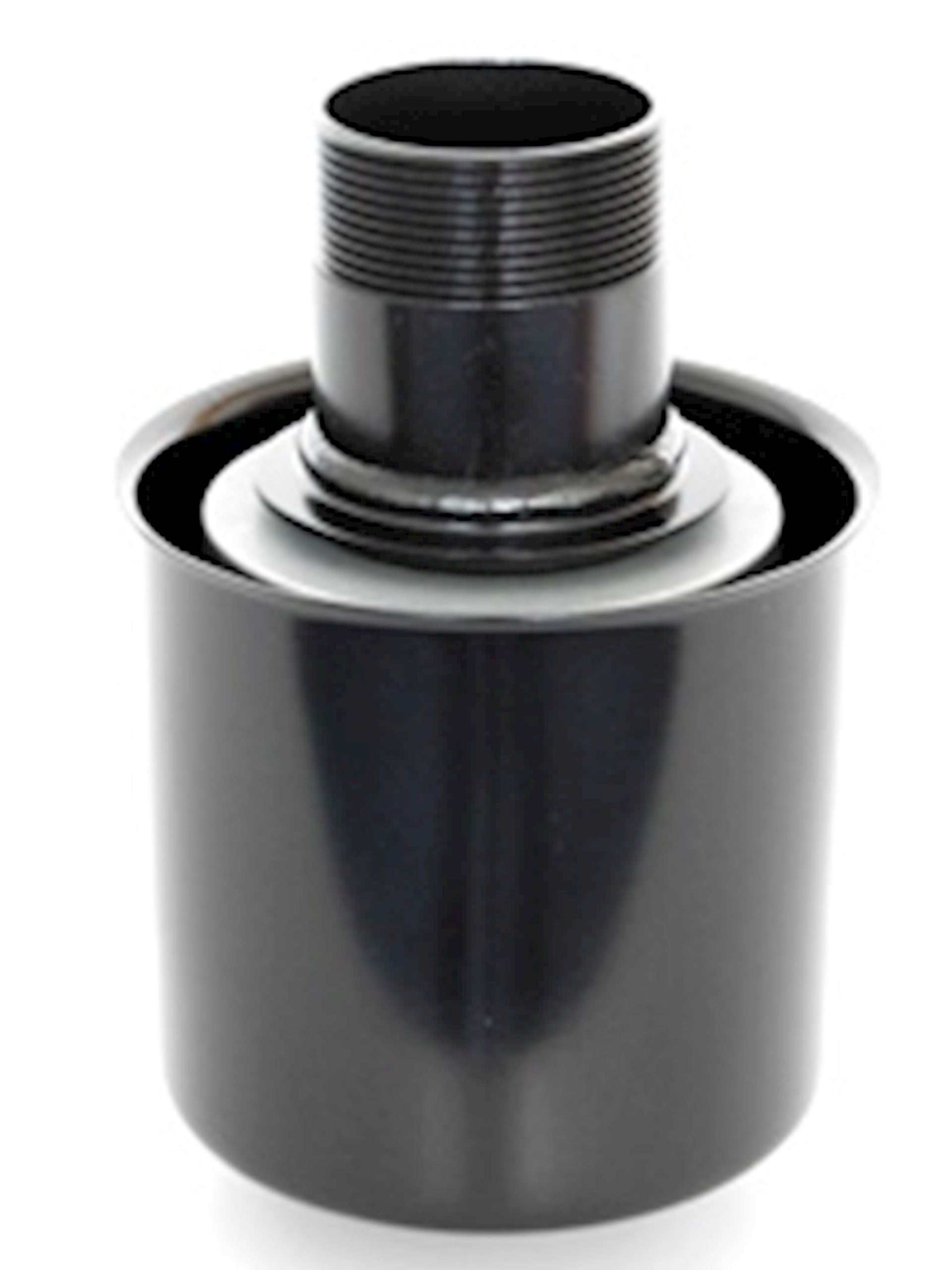

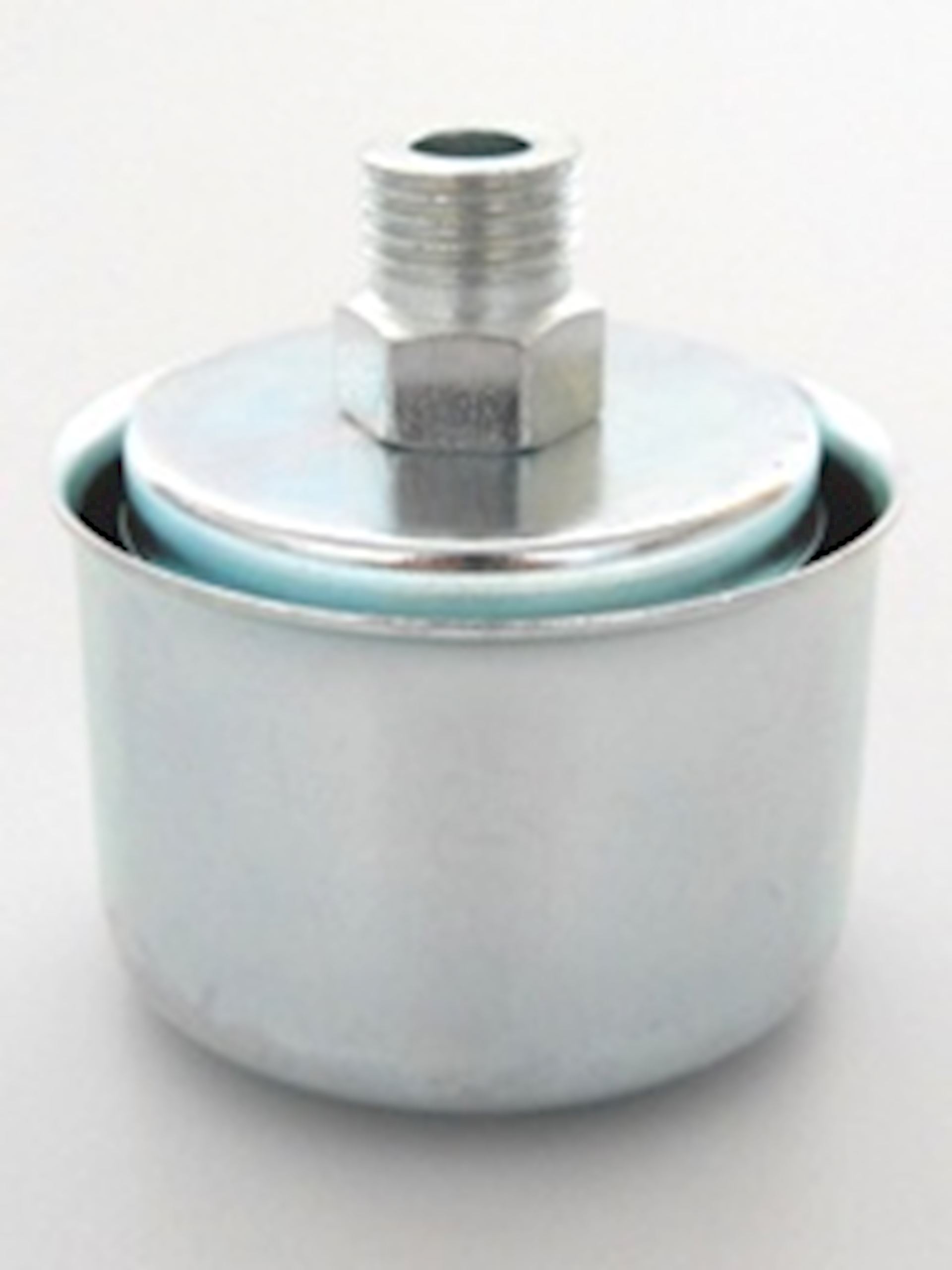

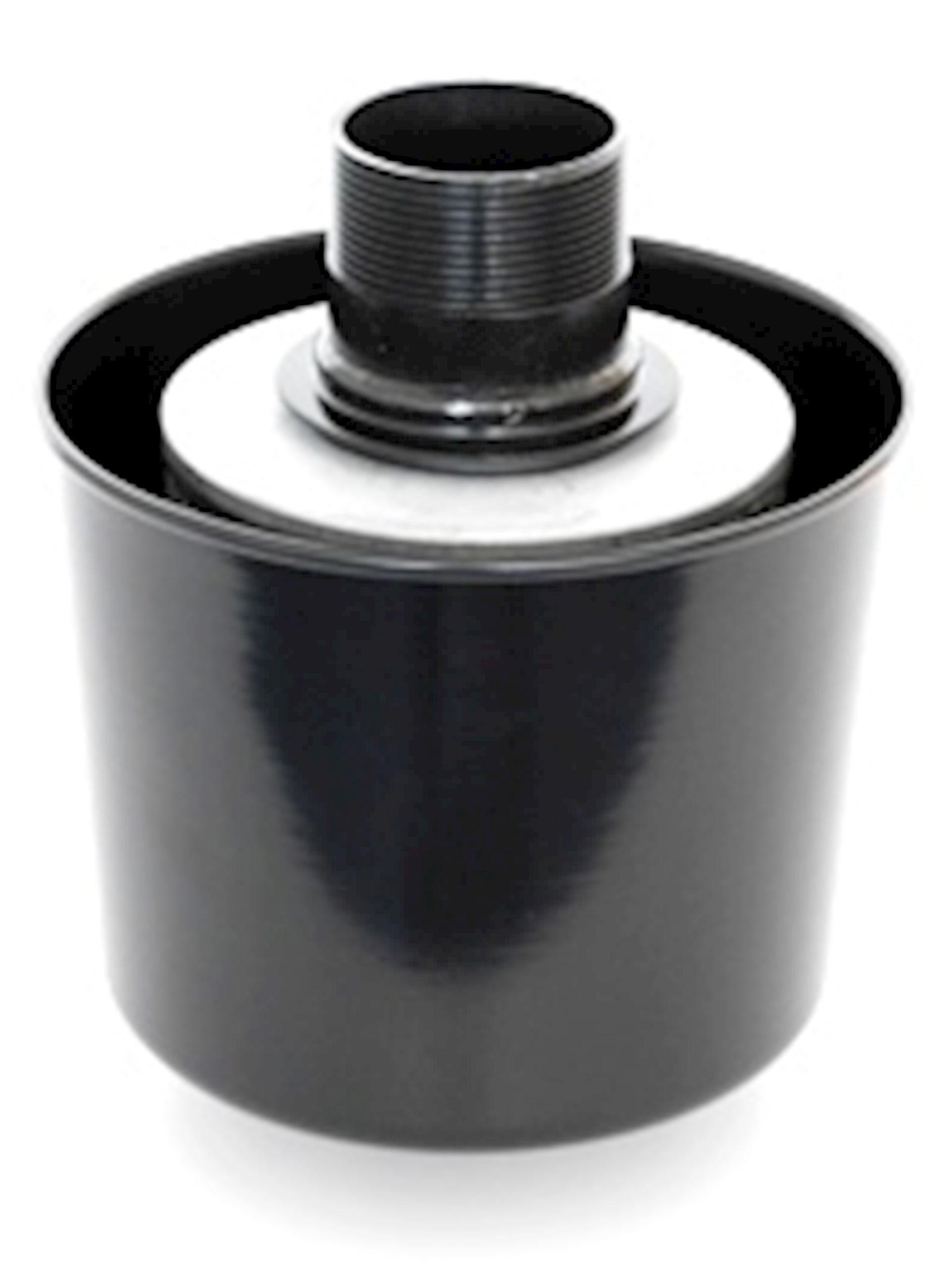

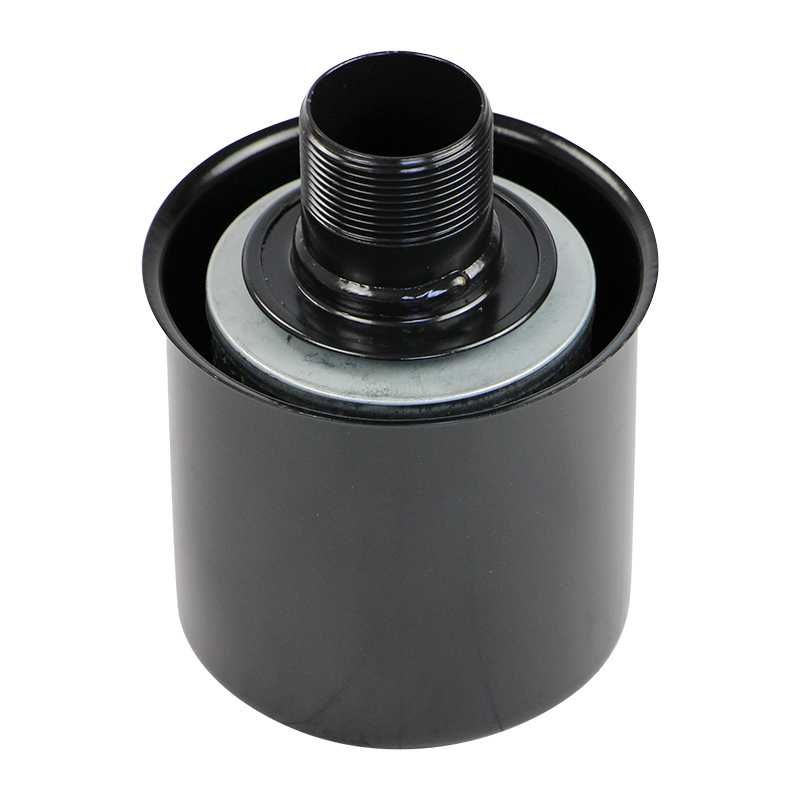

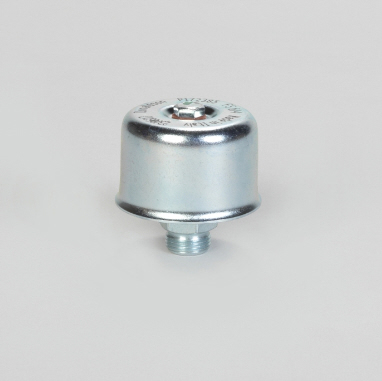

Style A + Style B

SF-part-no Style Dimensions in mm Volume flow Cartridge Media

Thread A Ø B Height C Height D (m³/h)

P 17-2381 A M 12 x 1,5 52 54 15 200 P 17-2433 mesh 40 µm

P 17-2382 A M 18 x 1,5 52 55 17 200 P 17-2433 mesh 40 µm

P 17-2383 A M 22 x 1,5 52 57 20 200 P 17-2433 mesh 40 µm

P 17-2384 A G 1/4" 52 54 16 200 P 17-2433 mesh 40 µm

P 17-2385 A G 3/8" 52 55 17 200 P 17-2433 mesh 40 µm

P 17-2386 A G 1/2" 71 71 19 500 P 17-1783 mesh 40 µm

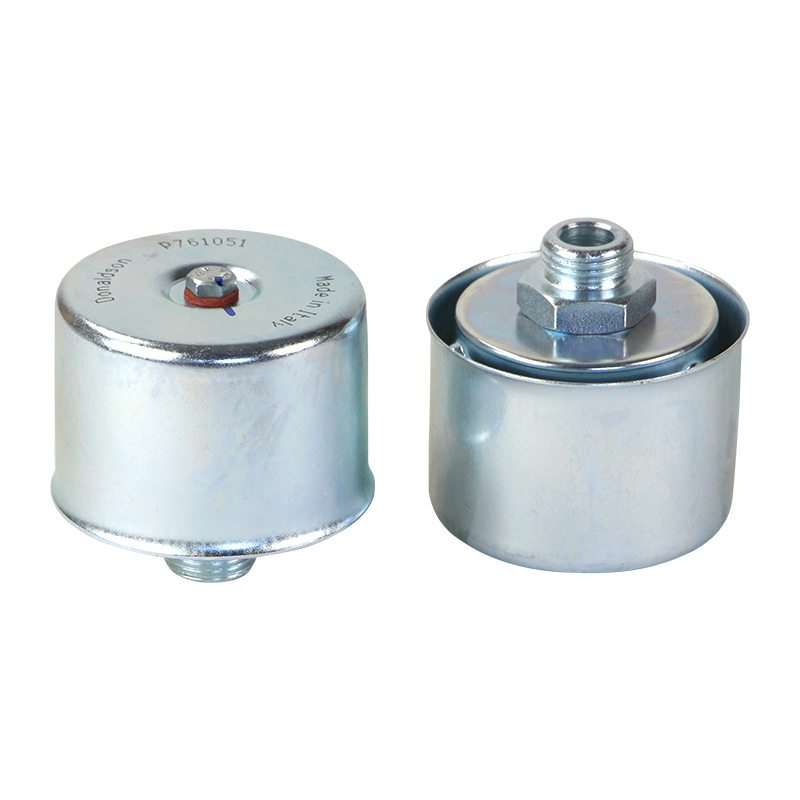

P 76-1051 A G 1/2" 71 71 19 500 SBL 18702 paper 10 µm

SLH 89009 B G 3/4" 104 100 30 45 SL 8470 paper 7 µm

P 17-2387 A G 1" 108 92 21 1000 P 17-1784 mesh 40 µm

SLH 89014 B G 1 1/2" 130 183 47 150 SL 8243 paper 7 µm

SLH 89015 B G 2" 130 198 64 250 SL 8243 paper 7 µm

SLH 89016 B G 2" 172 205 55 300 SL 8475 paper 7 µm

SLH 89017 B G 2 1/2" 196 205 60 500 SL 8476 paper 7 µm

SLH 89018 B G 3" 292 234 60 900 SL 8477 paper 7 µm

SLH 89019 B G 4" 335 272 60 1600 SL 8479 paper 7 µm
