Characteristics
- Longer oil change intervals
- Reduction of operating costs
- Higher operational reliability
- Reduced abrasion
- Reduction of the water content in the oil
By using a bypass filter, particles up to one micrometer and water are filtered out of the system during operation. The chemical aging process of the oil is slowed down, which increases the lifetime of the oil and noticeably extends the replacement intervals. The filters are suitable for filtration of all hydraulic-, gear-, engine-, processing- and other oils, as well as diesel fuel.
Technical data
SF-part number
SNF-300
SNF-500
Remark

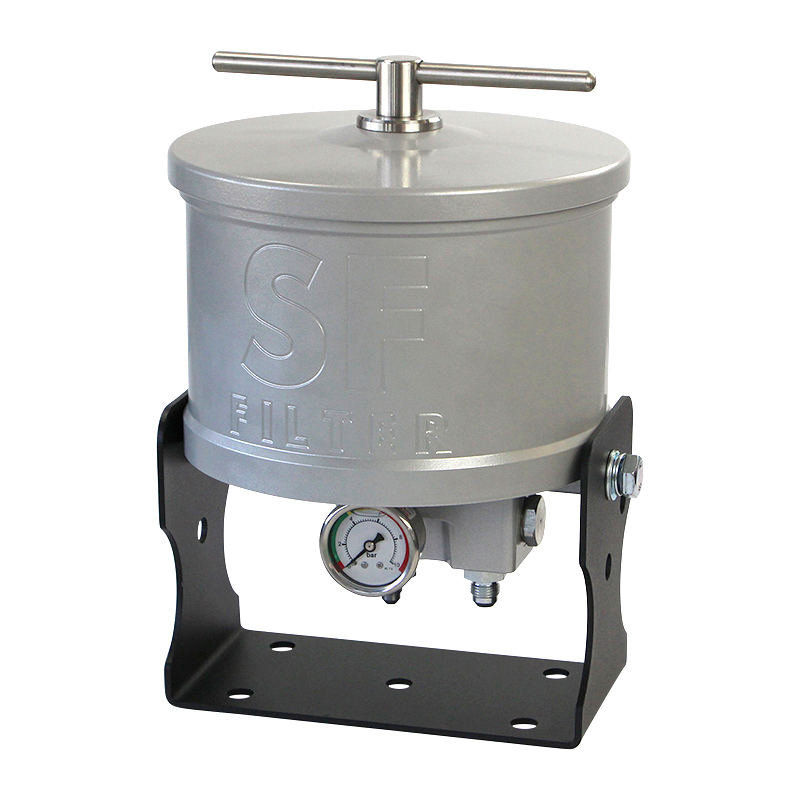

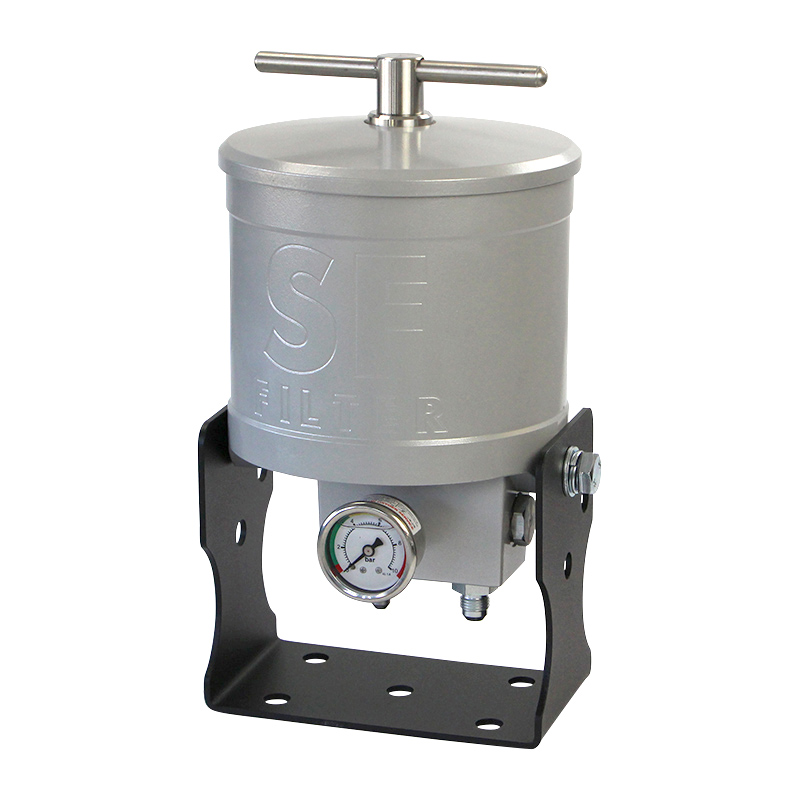

Filter housing with mounting bracket, fixed pressure compensator with 4 bar inlet pressure control and 2l/min flow control- pressure indicator- inlet pressure 5 to 300 bar- Return pressureless
Recommended system volume up to (l)
300
500
Working pressure (bar)
6-315
6-315
Height (mm)
309
306
Weight (kg)
4.2
6.0
Diameter mounting dimension (mm)
200
240
Input connection (Zoll)
3/8
3/8
Output connection (Zoll)
1/4
1/4
Max. Working temperature (°C)
80
80

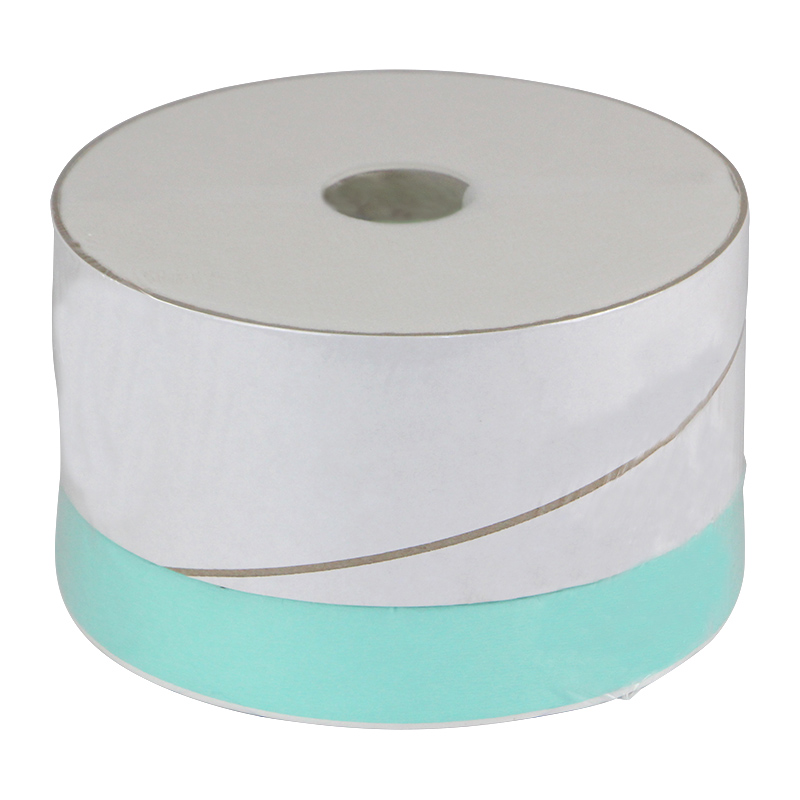

Element
HY 80134
HY 80135
Fineness (µm)
1
1
Dirt holding capacity (g)
1000
2000
Water absorption up to (ml)
300
750
All specifications refer to our standard product range. Due to constant technical developments, this information may change at any time without notice.
