Air breather dryer filter are a combination between an air breather filter and an air dryerApplication: ventilation of hydraulic oil tanks and gear unitsLubrication (water) downgrades the quality of the oil additives and accelerates the oil ageingTemperature variations in the hydraulic system let water condense and cause corrosion in system componentsConsequence: unplanned availability time of the system and high maintenance costsFor the installation five sizes of adaptors are available (see below second chart)Non-recurrent expense for the reusable adaptor reduced the follow-up costs

SF-part number

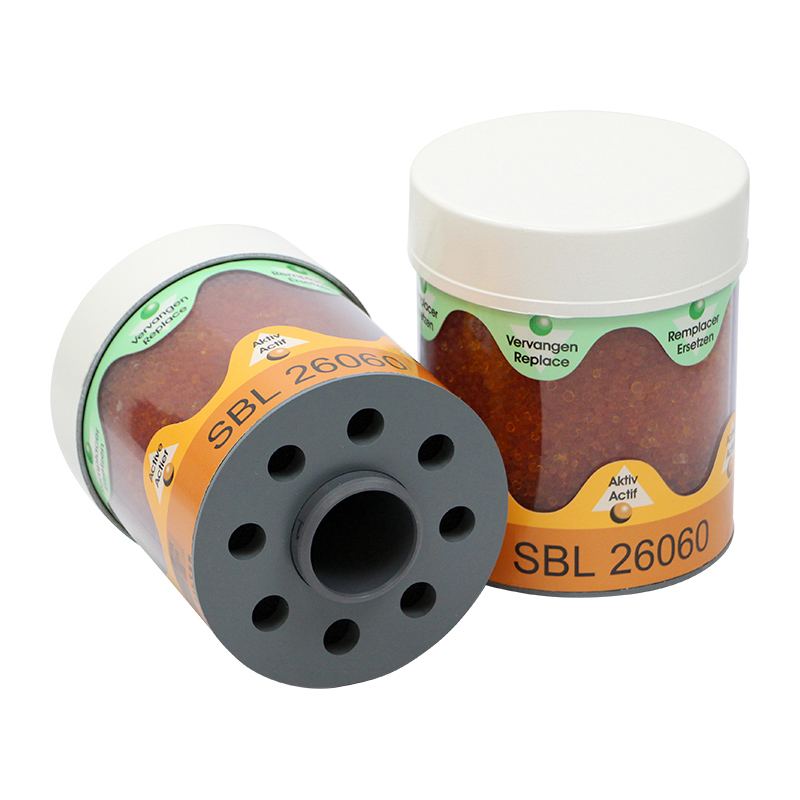

SBL 26060

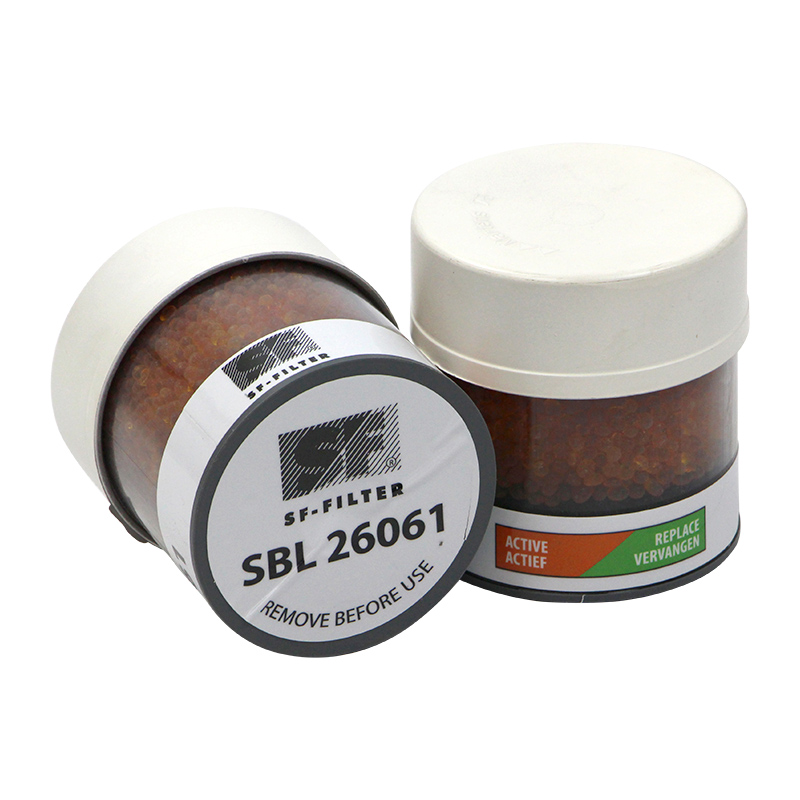

SBL 26061
Housing
plastic material
plastic material
De-airing valve
-
-
Replacement granulate
-
-
Water absorption
320 ml
80 ml
Volume
1000 ml
250 ml
Volume flow (nominal)
550 l/min.
-
Volume flow (maximal)
1000 l/min.
140 l/min.
Dimension
Ø 132 x 160 mm
Ø 80 x 85 mm
Working temperature
-20°C - +70°C
-20°C - +70°C
Fineness of filtration
3 micron
3 micron
Humidity removal granulate
silica gel (colour indicator orange to green)
silica gel (colour indicator orange to green)
SF-part number

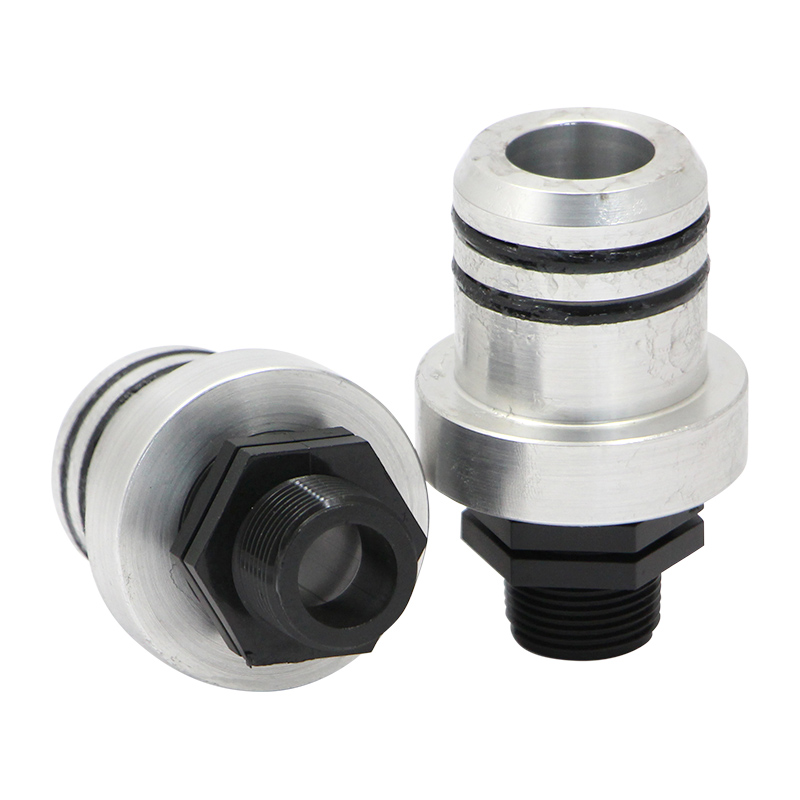

Adaptor for SBL 26060
SF-ZUB 26060/1
G 3/4" BSPT external thread
SF-ZUB 26060/2
G 1" BSPT external thread
SF-ZUB 26060/3
G 1 1/4" BSPT external thread
SF-ZUB 26060/4
G 1 1/2" BSPT external thread
SF-ZUB 26060/5
G 2" BSPT external thread
